Tốc độ quét: 80 стр. мин/ 160 из.мин.
Vùng quét tối đa: 304.8 x 5080 mm
Dung lượng khay ADF: 100 tờ
Công suất quét hàng ngày: 24,000
Áp dụng từ 01/01/2025 đến 30/06/2025:
✦ Nhận và trả bảo hành tại nhà 24/7.
✦ Giảm ngay 50.000 VNĐ khi mua máy in, máy scan giá dưới 10 triệu đồng.

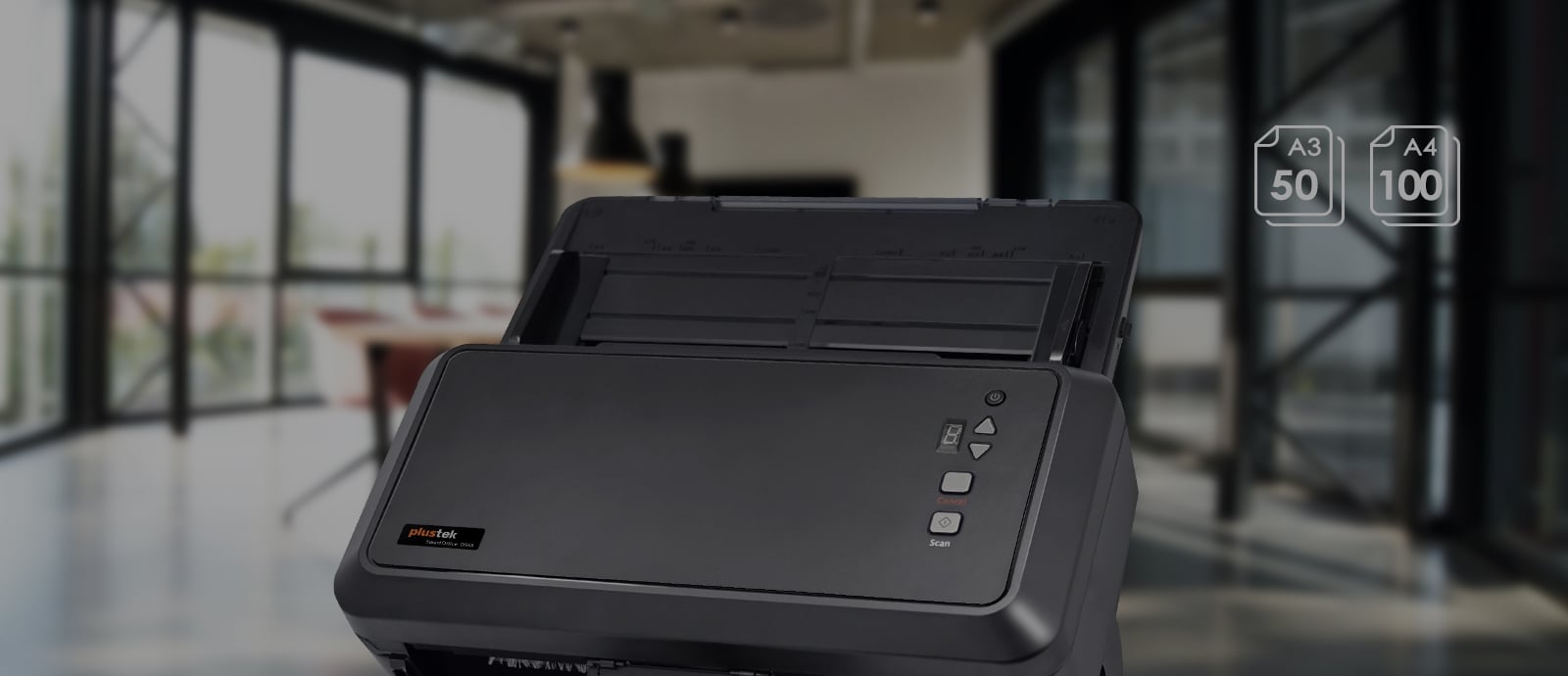

With fast scanning speeds and imaging technologies of up to 80 ppm/160 ipm (A4 Landscape) with one-button duplex scanning, the scanner also boasts a robust capacity of the Auto Document Feeder (ADF) that can hold up to 50-page A3 size or 100-page A4 size for large volume document processing.
Featuring a new foldable storage design, it has three variable modes that can easily switch between 10°, 40°, and 90°, meeting the scanning application needs of different papers and industries.

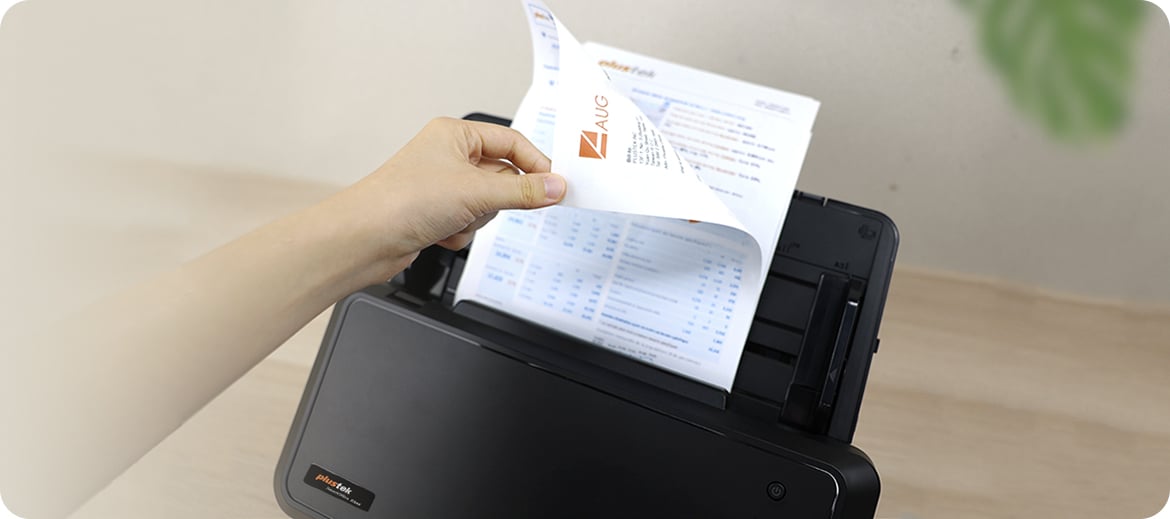

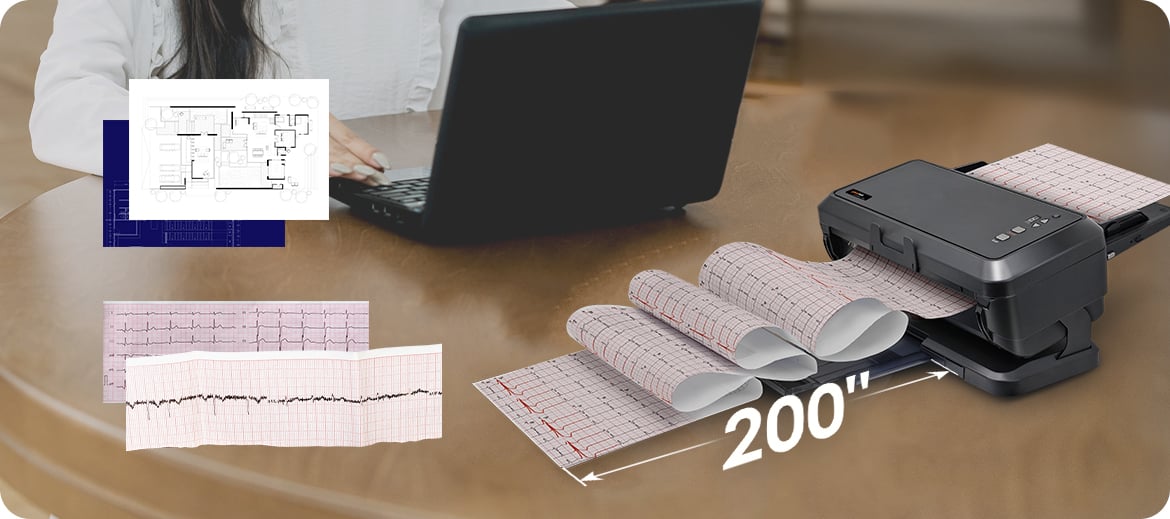

Special mode designed for scanning long paper stably. Leveraging the experience in the scanner industry, Plustek knows what the best angle for customer is to scan long documents in safe and effective way.

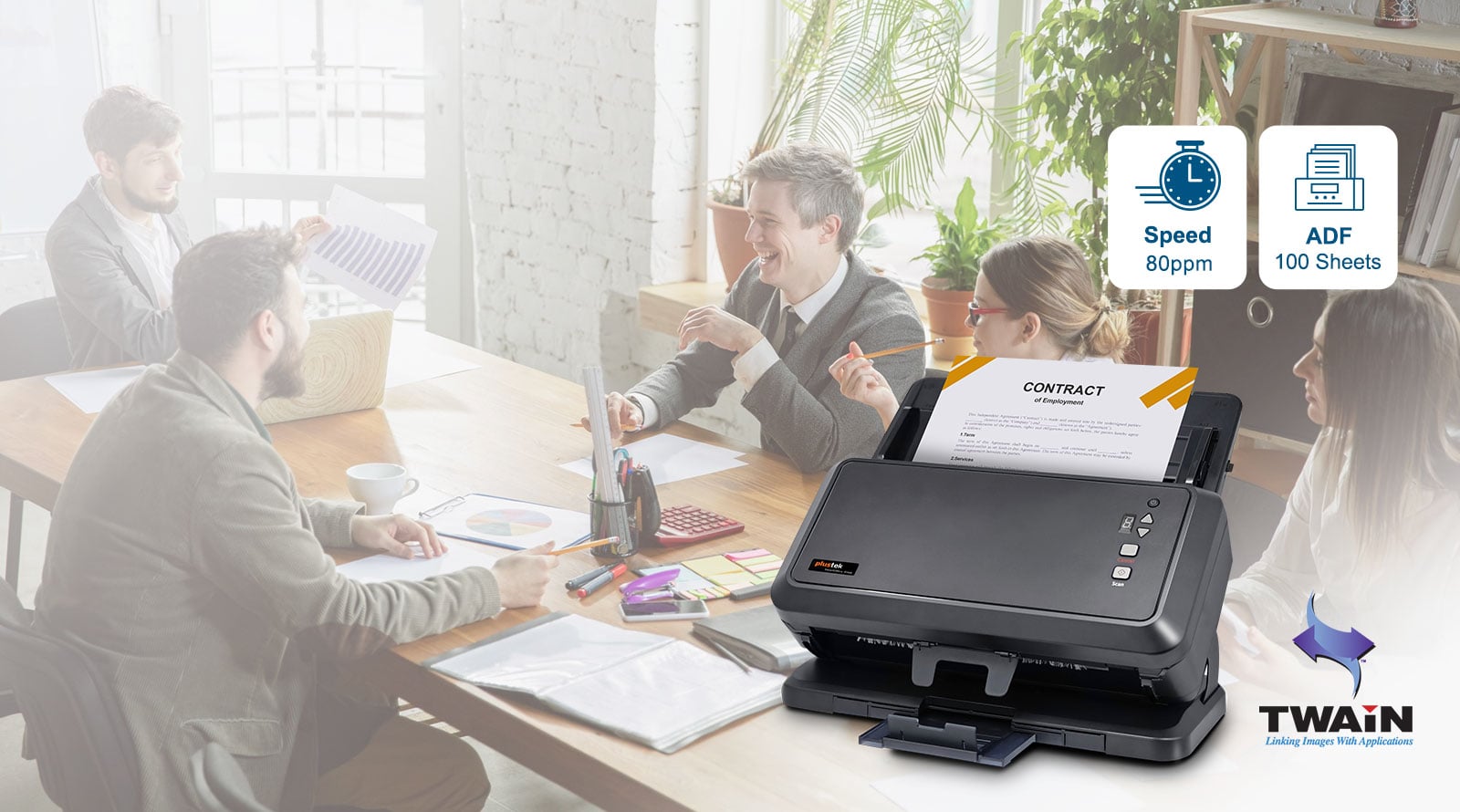

Delivering high-quality scans at up to 80 ppm/160 ipm (Color mode, 300 dpi, A4 Landscape), the DS68 color scanner offers a peak daily duty cycle of up to 8,000 sheets and TWAIN driver included.

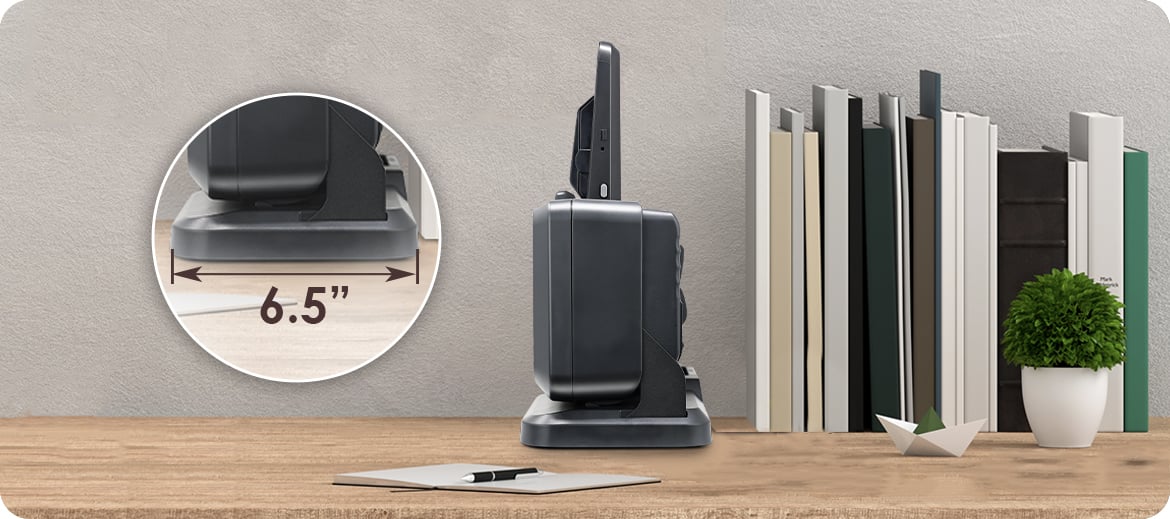

Effectively decrease 50% of scanner size by transforming to storage mode, easily to place and organize on the desktop or in the office.
Send your scanned documents to the application
Save directly to a shared folder or local folder, archive your documents more easily
Attach your documents and directly send via your default MAPI-based email program
Scan images straight to your printer without requiring saving to the device
Upload the documents directly to FTP

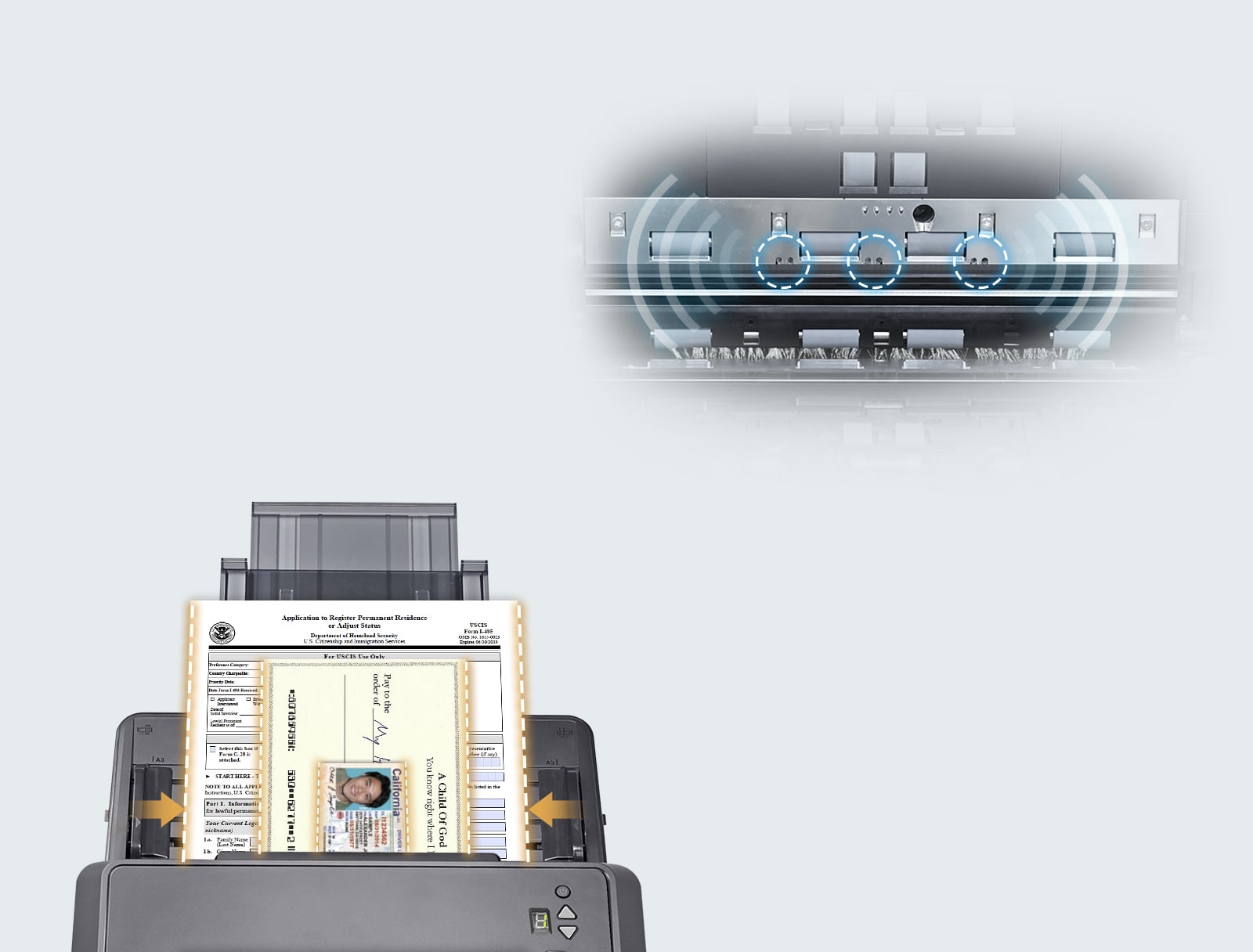

Using multiple Intelligent Electronic Reflective Light Sensors, our scanner provides superior sensitivity and minimal delay compared to traditional mechanical sensors. It effectively detects paper skewing in realtime, thus reducing cropping issues.

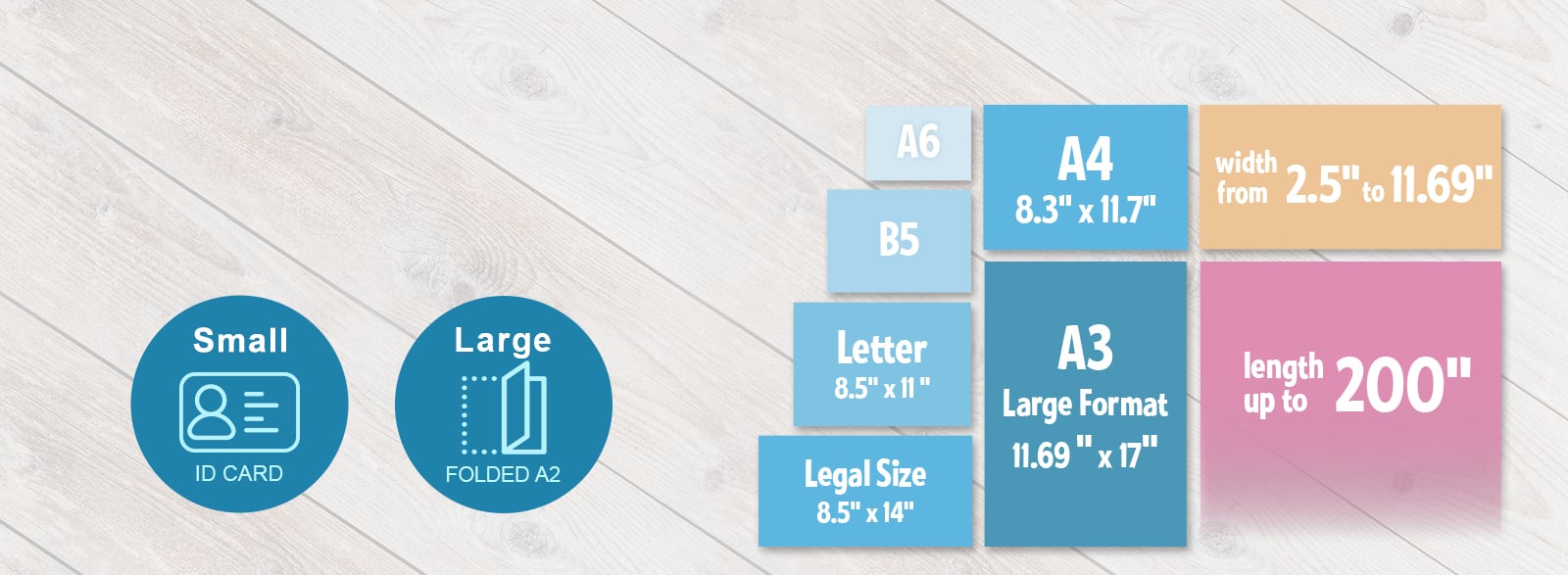

Addressing the difficulty of traditional scanners in mixed-size paper scanning, the DS68 adopts an asymmetric composite paper guide design. It allows the paper to align on one side, reducing paper sway during scanning and improving the stability of mixed scanning paper feeding.

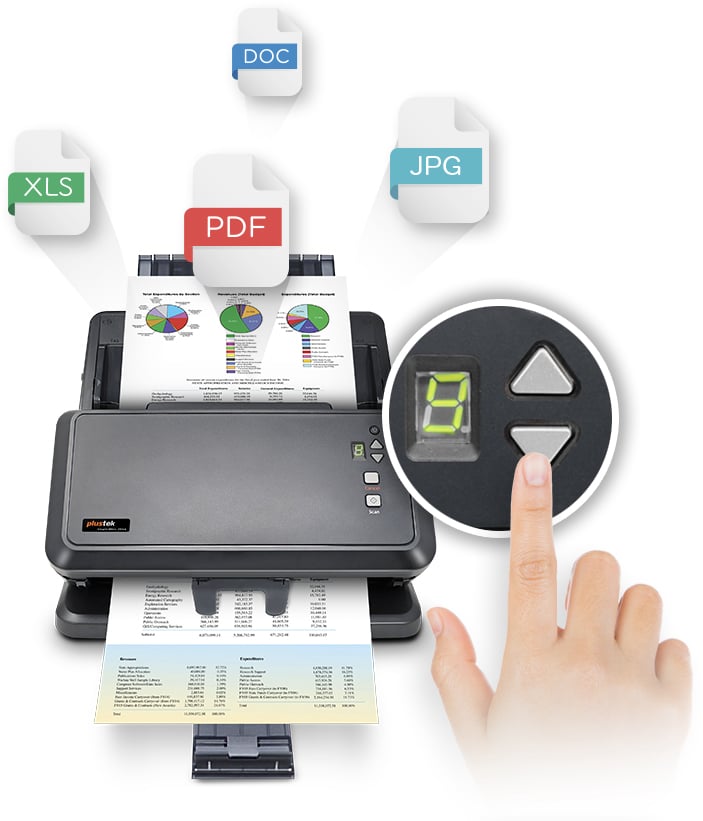

Simplifies digitizing process, allows each and every document scan is crisp and clear, just the way you like it, without spending additional time to reorganize.
300dpi Download 300dpi Download
|
Cảm biến hình ảnh | CIS x 2 |
Nguồn sáng | LED | |
Độ Phân Giải Quang Học | 600 dpi | |
Độ Phân Giải Nội Suy | 1200 dpi | |
Độ Phân Giải Phần Cứng | 600 x 600 dpi | |
Chế độ quét | Màu: đầu vào 48 bit, đầu ra 24 bit Xám: đầu vào 16 bit, đầu ra 8 bit Đen trắng: 1 bit |
|
Dung lượng khay ADF | 1. 100 tờ (A4/Letter, 70 g/m² hoặc 18 Lbs), Độ dày tối đa dưới 10 mm (0.4”) 2. 50 tờ (A3, 70 g/m² hoặc 18 Lbs) 3. 20 tờ (Danh thiếp) 4. Thẻ nhựa (kéo ngang), Độ dày tối đa dưới 1.4 mm, có thể quét thẻ dập nổi Lưu ý: Dung lượng ADF tối đa thay đổi tùy vào trọng lượng giấy |
|
Tốc độ quét (ADF) | 80 tờ/phút, 160 ảnh/phút (Xám, Đen trắng, 300 dpi, A4 kéo ngang) 60 tờ/phút, 120 ảnh/phút (Chế độ mầu, 300 dpi, A4 kéo ngang) 54 tờ/phút, 108 ảnh/phút (Xám, Đen trắng, 300 dpi, A3) 36 tờ/phút, 72 ảnh/phút (Chế độ mầu, 300 dpi, A3) Lưu ý: Kết quả có thể khác nhau tùy thuộc vào phần mềm quét, bộ vi xử lý của máy tính và bộ nhớ hệ thống |
|
Vùng quét (WxL) | Tối đa: 304.8 x 431.8 mm (12” x 17”) Tối thiểu: 13.2 x 13.2 mm (0.52” x 0.52”) Giấy dài: 304.8 x 5080 mm (12” x 200”) |
|
Kích thước giấy cho phép (WxL) | Tối đa: 304.8 x 431.8 mm (12” x 17”) Tối thiểu: 50.8 x 63.5 mm (2” x 2.5”) |
|
Trọng lượng giấy cho phép (độ dày) | 27 - 413 g/m² (7.2 đến 110 Lbs) | |
Phát hiện nạp giấy kép | Bằng công nghệ sóng siêu âm | |
Công suất quét hàng ngày (Tờ) | 24,000 | |
Tuổi thọ lẫy tách giấy (Quét) | 300,000 | |
Tuổi thọ trục cuốn (Quét) | 300,000 | |
Tuổi thọ lô cuốn giấy (Quét) | 100,000 | |
Nút Hành Động | 5 nút: Power, Up, Down, Cancel, Scan 9 phím chức năng. Tất cả có thể tùy biến. |
|
Nguồn điện | 24 Vdc/ 1.25 A | |
Giao diện kết nối | USB 3.2 Gen 1x1 | |
Trọng lượng | 6.8 Kgs (14.99 Lbs) | |
Kích thước (W x D x H) | 436 x 262 x 266 mm (17.16" x 10.31" x 10.47") | |
Chuẩn kết nối | Chuẩn TWAIN | |
Hệ điều hành hỗ trợ | Windows 7 / 8 / 10 / 11 | |
Yêu cầu phần cứng | Bộ xử lý CPU 3.2 GHz trở lên [1] [1] Windows được đề xuất: Bộ xử lý Intel® Core ™ i7 3.2 GHz với 4 lõi CPU trở lên RAM tối thiểu 4 GB (Khuyến nghị: 8 GB trở lên) 6 GB dung lượng đĩa cứng để cài đặt chương trình Cổng USB: Cổng USB 3.0 (Hỗ trợ USB 2.0/1.1) Kích thước màn hình 1024x768 trở lên |
|
Phần mềm đi kèm | Plustek DocAction Plustek DocTWAIN |
|
OCR Tích Hợp | Plustek OCR (Hoạt động trên nền tảng ABBYY® FineReader®) |
Tên tệp | Hệ điều hành | Ngôn ngữ | ||
---|---|---|---|---|
SmartOffice DS68 Trình cài đặt
V6.0.1.0
2024-03-19
Installer for Windows |
|
|
Tải xuống | |
SmartOffice DS68 Trình cài đặt
V6.0.1.0
2024-03-19
Online Installer for Windows |
|
|
Tải xuống |
Tên tệp | Hệ điều hành | Ngôn ngữ | ||
---|---|---|---|---|
Gói ngôn ngữ PlustekOCR
|
Tải xuống |
Tên tệp | Ngôn ngữ | ||
---|---|---|---|
SmartOffice DS68 Clean & Replace Hướng dẫn nhanh
V1.0
2024-07-04
|
|
Tải xuống | |
SmartOffice DS68 Hướng dẫn sử dụng
V1.1
2023-08-18
|
|
Tải xuống | |
SmartOffice DS68 Hướng dẫn nhanh
V1.0
2023-07-04
|
|
Tải xuống |
Tên tệp | Ngôn ngữ | ||
---|---|---|---|
SmartOffice DS68 Bảng Dữ Liệu
V2.1
2023-11-02
|
|
Tải xuống |
